TunnelX
فارسی | English
TunnelX is a free and open-source Windows split-tunneling client built by MaxFan. It routes selected apps, selected destinations, or the whole system through supported tunnel cores while keeping local and excluded destinations on the normal network path.
Features
- App-based split tunneling for selected Windows processes
- Full-route mode for whole-system tunneling
- Xray-core / sing-box based V2Ray workflows
- OpenVPN Community support via user-provided
.ovpnfiles for app-based split tunneling - Local SOCKS5 proxy for tools that need
127.0.0.1 - DNS redirect, IPv6 blocking, leak guard, route diagnostics, and traffic history
- Persian-first Windows desktop UI
OpenVPN
TunnelX can run an installed OpenVPN Community openvpn.exe with a user-selected .ovpn profile, then apply its own split-tunneling policy so only selected apps and included destinations use the OpenVPN tunnel.
OpenVPN is not bundled with TunnelX. Install OpenVPN Community separately, select the .ovpn file in TunnelX, and enter the OpenVPN username/password if the server requires credentials. OpenVPN Connect alone is not enough for this mode because it manages routes and DNS through its own client.
Screenshots

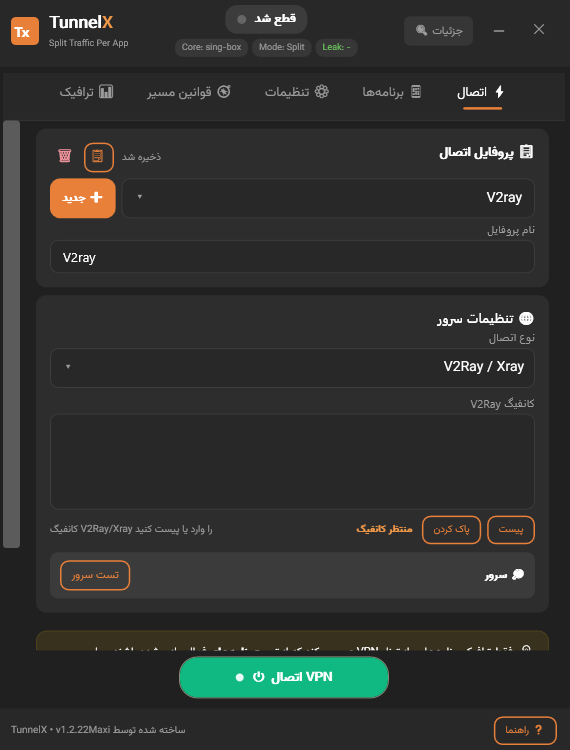

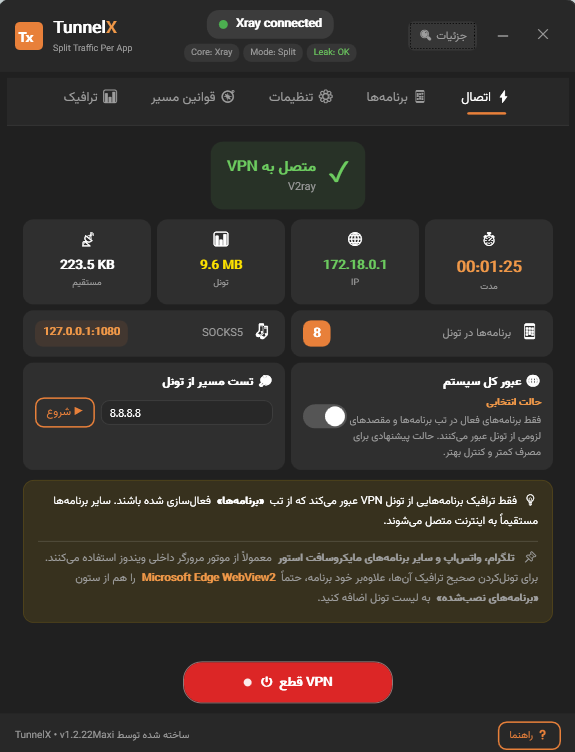

| Connection dashboard | Profile and server setup |
|---|---|
 |
 |

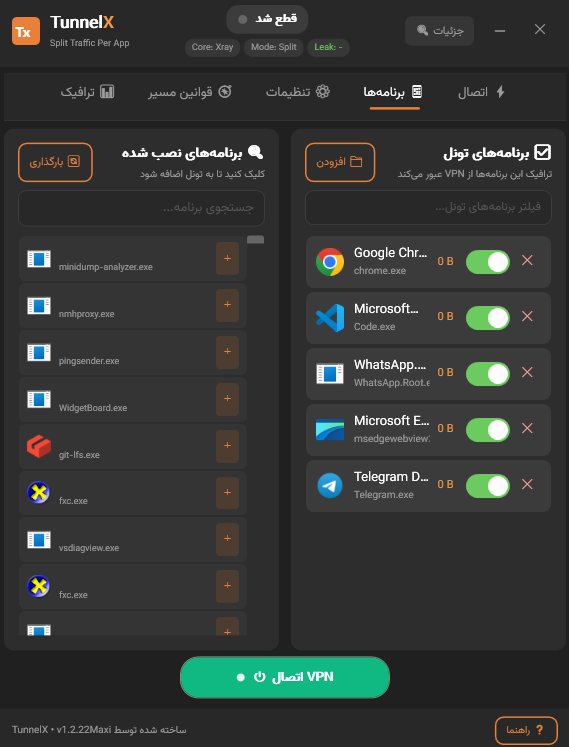

| App split tunneling | Tunnel settings |
|---|---|
 |
 |
Download
Public downloads should be attached to GitHub Releases after release validation is complete:
Release assets are built and uploaded by GitHub Actions. Each published standalone executable includes a .sha256 checksum file, and the release notes link back to the workflow run that produced the artifact.
Build
End-user requirements for the recommended standalone release:
- Windows 10/11
- 64-bit Windows (
win-x64). 32-bit Windows is not supported by the current release package. - Administrator privileges when running the app, because route and packet interception features need elevated access
- No separate .NET Runtime installation is required for the self-contained standalone EXE.
Developer requirements for building from source:
- .NET 8 SDK
dotnet build AppTunnel.sln -c Release
dotnet publish AppTunnel\AppTunnel.csproj -c Release -r win-x64 --self-contained true -p:PublishSingleFile=true -p:EnableCompressionInSingleFile=true -p:IncludeNativeLibrariesForSelfExtract=true -p:DebugType=None -p:DebugSymbols=false
More release notes are in docs/BUILD.md. Future ideas are tracked in docs/ROADMAP.md.
License
TunnelX is licensed under GPL-3.0-or-later. Bundled third-party components keep their own licenses. See:
LICENSETHIRD_PARTY_NOTICES.mddocs/LEGAL.md
Donate
TunnelX is free. Donations are optional and help keep the project maintained.
Use the GitHub funding button or see docs/DONATE.md for donation options.
Safety Notice
TunnelX is a networking and routing tool. Use it only where you are allowed to run VPN, proxy, packet capture, and route-management software. The project does not provide legal advice.
TunnelX is provided as-is, without warranty and without any obligation from the maintainer to provide updates, fixes, support, or continued availability.
